Description

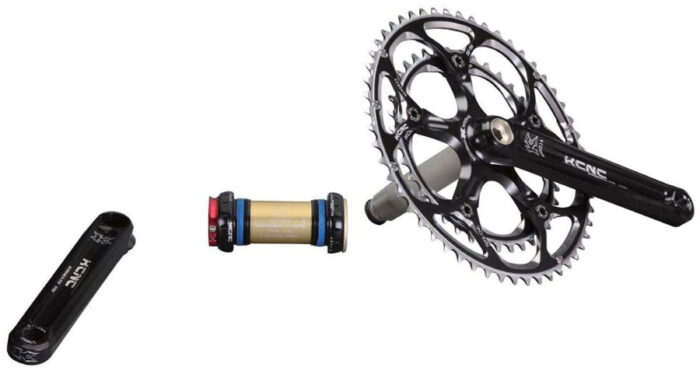

Fully precision CNC machined lightweight double road crankset with external stainless steel bearing bottom bracket (ceramic upgrade available).

These cranks are exquisite, weighing in at just 668g complete (175mm 50/34). They also have a reduced Q-factor of 151mm.

The new bottom bracket design features full stainless steel replaceable cartridge bearings (ceramic upgrade available) and a red alloy spacer clamp to remove axial float of the scandium alloy axle. The crank arms are both removable from the BB axle, but the new design allows the driveside arm and spider to be left on the axle, and the axle to be removed by simply removing the non-driveside arm and sliding out of the BB. The non-driveside arm is supplied with a stainless steel extractor cap.

Black anodised finish with cnc’d alloy finish teeth
CNC machined 7075 T7 alloy chainrings ramped and pinned for perfect shifting
CNC 7075 alloy 5-arm spider,BCD 110mm
Patented double hollow hole design arms, 7075AL
7075 alloy chainring bolts
T-7451 scandium alloy bottom bracket axle with replaceable external bearings
Fits 68mm bottom bracket shells, English thread (1.37″ 24tpi)
M18 extra long cnc’d Sc alloy crank bolts
Q-Factor 151mm
Designed for road racing.
