SUR-RON: LBX Series

Description

Sur-Ron’s LBX Dual Sport E Dirt Bike Series deliver more than 6,000 Watts of peak power with a top speed of over 45Mph. The lightweight forged aluminium frame houses a removable Lithium-ion battery pack with 176 Panasonic cells pushing out 60V 32A to the mid-mounted, air cooled motor. Models are available for both onroad or offroad use, with the appropriate specifications tweaked to comply with each environment.

Weighing-in at a highly flickable 47kg with an onboard sine-wave controller and regenerative-braking, 4 piston hydraulic brakes can rein in the power at all speeds. These now come with titanium finish calipers and sintered pads too. This paired with fast charging of 2.5-3.5 hours (per battery pack), will keep you riding far harder and for much longer than your body may be ready for.

“Sur-ron LBX electric cross-over is a winner”
MCN News Editor, Jordan Gibbons

Suspension duties are handled by either RockShox Boxxer or DNM USD triples with 203mm of travel. The seat has been updated and is now wider, matched with higher and wider handlebars as well. The heavy duty Gold O Ring chain minimises maintenance and reduces noise too.

Peak efficiency is 98.50% and the onboard power management can be adjusted via the LCD dash between Eco and Sport modes. You can cover approximately 60 miles when riding at an average speed of 20Mph (depending upon rider weight, conditions, terrain, etc.). Seat height is a rider-friendly 80-84cm, so most people can ride this Red Dot Award winning bike.

Sur-Ron LBX Series Specifications:

MOTOR
Motor Type: PMSM
Mounting Position: Mid
Weight / Motor External Diameter: 7.0kg / 180mm
Motor Axial Length: 130mm
Peak Efficiency: 95.60%
Cooling Method: Air-Cooled

CONTROLLER
Controller Type: X Version Sine Wave
Dimensions: 240mm x 110mm x 50mm
Peak Efficiency: 98.50%
Power Modes: Eco and Sport

MOTOR POWER SYSTEM
Rated Voltage: 60V (DC)
Rated Power / Peak Power: 3000W / 6000W
Rated Torque / Peak Torque: 10.2Nm / 39.00Nm
Motor Shaft Output Torque @ 1000RPM: 35.40Nm
Rated Rotation Speed: 4300rpm
Peak Efficiency: 97.8%
Range of Efficiency (≥80): 1.4Nm – 21.5Nm

TRANSMISSION
Gear Ratio: 1:7.6
Transmission: Primary Belt & 420 Drive Chain
Belt Brand & Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS
Horn: European Standard Horn
Battery: 60V 32A Lithium Battery with 176 Panasonic Cells
Battery Life Time: 500 Cycles (and then the capacity reduces step by step)
Battery Charge Level: Integrated Battery LCD Display
Charger: 10A
Charing Time: 2.5-3.5 Hours
USB Connection: USB-2.1 A Single Socket
Speedometer: LCD Digital Speedometer
LED Headlight & Rear Light: Yes

WARRANTY
Battery / Chassis / Swing Arm: 18 Months (or up to 20,000 miles on Battery whichever is reached sooner)
Other Components: 12 Months, excluding service items and subject to manufacturers servicing requirements. Competition use 30 days only. Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, however the cost must be paid by the owner, prices available upon request.

VEHICLE
Chassis – Swing Arm Material: No. 6061 T4 & T6 Aluminium Alloy
Chassis Construction Method: Forged by 6000 Tons of Pressure
Chassis Surface & Colour Processing: Anodic Oxidation
Front Suspension: DNM Adjust pre-load & compression
Rear Shock Absorber: Adj DNM Shock with TR Suspension Link System
Wheel Type & Size: Spoke Wheels, Front/Rear 19″ x 1.4″ Alloy Hubs
Tire Size: Front/Rear 70/100-19 CST
Top Speed: 47Mph/73Kph Varies depending upon load and gearing
Max Range: 60 Miles @ 20 MPH average speed depending upon terrain
Net Weight: 47kg
Max Load: 100kg (15.75 Stone)
Max Climb: 45°
Rear Sprocket: 48T
Side Stand: Yes with kill switch
Vehicle Dimensions: 1870mm x 780mm x 1040mm
Min. Ground Clearance: 270mm
Wheelbase: 1260mm
Seat Height: 84 to 88cm

Onroad, Offroad and everything in-between

The Sur-Ron LBX Series build upon their heavy duty underpinnings with a selection of components fine-tuned for two key areas: offroad and onroad. The new RockShox forks are available only for offroad use, as they are not ‘homologated’ for onroad use. Meanwhile, the onroad model comes complete with the necessary parts to be street-legal, including the numberplate, mirrors and indicators.

Sur-Ron LBX RS Offroad Only:

Forks: RockShox Boxxer
Colour: Black, Blue, Grey, Orange or Yellow
Road Legal: No

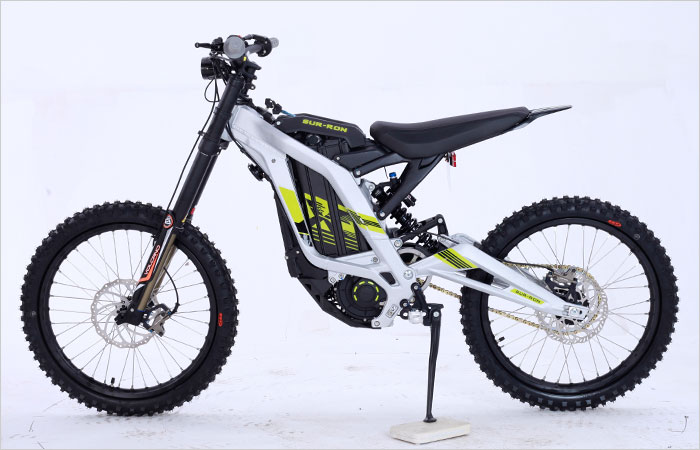

Sur-Ron LBX Offroad Only:

Colours: Silver/White, Green, Red, Blue, Orange and Grey
Road Legal: No

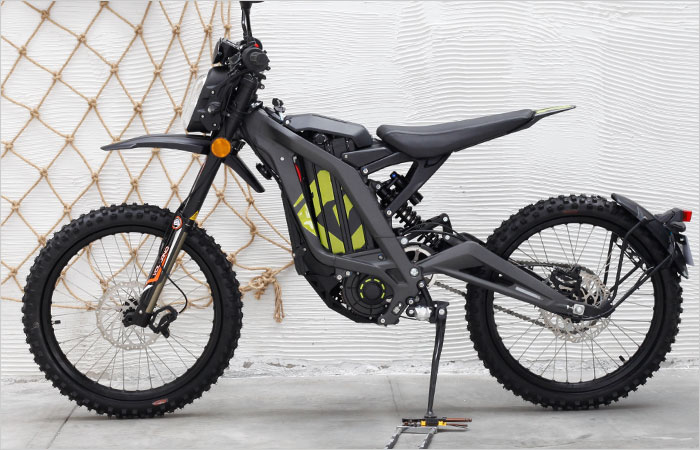

Sur-Ron LBX L1E Street-legal:

Colours: Grey, Black, Red, Yellow or Blue
Road Legal: Yes (homologation for 30Mph)
Mirrors and indicators: Yes
Number plate housing: Yes
