Grin: Phaserunner V4 Series

Description

Availability:

NOT AVAILABLE UNTIL AUTUMN/WINTER 2022!!!

What to do?

Frankenrunner matches the specifications/connectors of the upcoming Phaserunner V4 today
Baserunner V4 offers the same featureset and software, at up to 52V

The Phaserunner V4 Series from Grin Technologies is a fully integrated, waterproof Controller for use with the Cycle Analyst and a variety of Motor combinations, handling 90V Max and 96A Peak Phase Currents (~45A Continuous).

The V4 model will come with the WP8 CA Plug. Two shell options will be available to match your bike, each coming with a 45cm cable length to suit rear Motors.

The Phaserunner Series require a computer for set-up to mate and configure, which also needs the USB->TTL connector (sold separately and linked below)

Codes: MT is metal/silver, MT-BK is metal/black, the L10 version includes the integrated cable for compatible hub motors, rather than a socket for a BBSHD/equivalent Harness to be plugged into. There is a Harness for the L10 too, so the MT can fit both mid-motors and hub motors.

Phaserunner Series Specifications:

• Dimensions (L x W x H, mm): 99 x 40 x 34mm
• Weight: 0.26kg
• Max Battery: 50A
• Battery Range: 30-90V
• Low Voltage Cutoff: Programmable
• MOSFETs: 6X 100V, 3mOhm

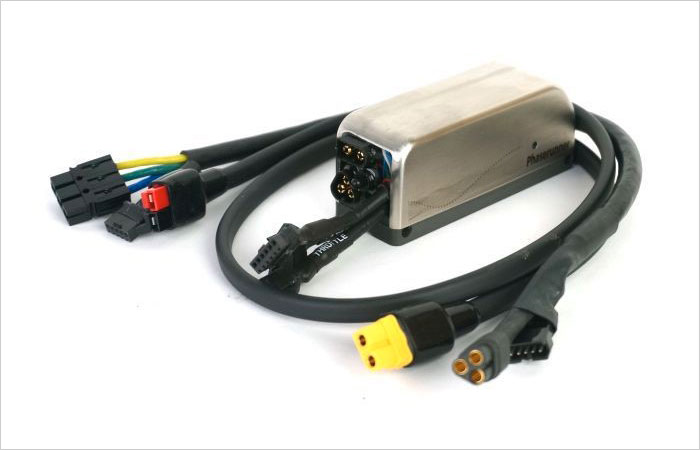

Phaserunner MT Specifications:

• Stainless steel finish
• Connectorised battery, phasewire and embedded communications jacks

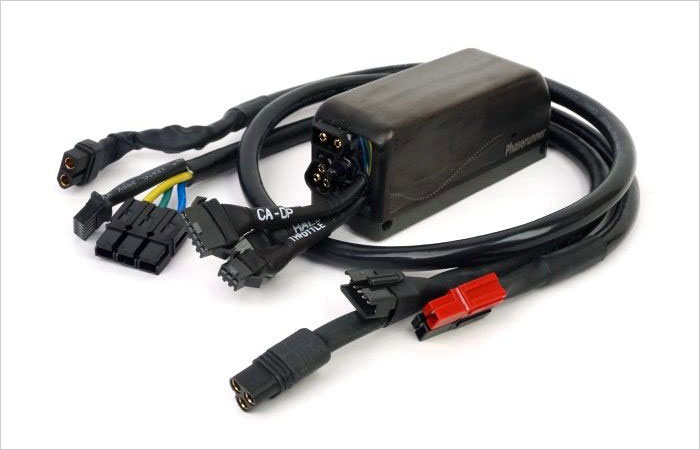

Phaserunner MT BK Specifications:

• Black finish
• Connectorised battery, phasewire and embedded communications jacks

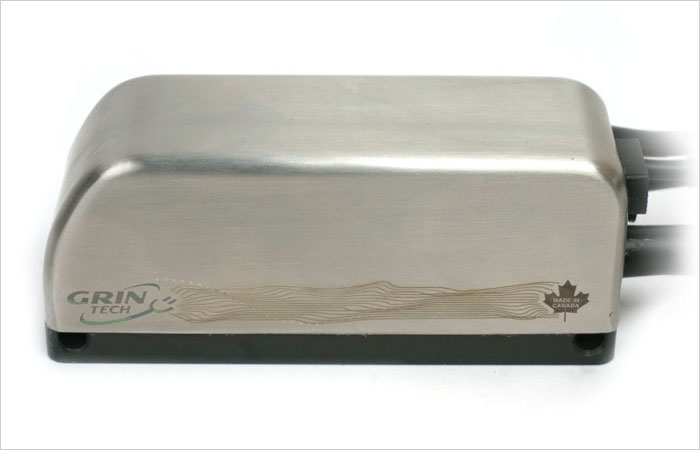

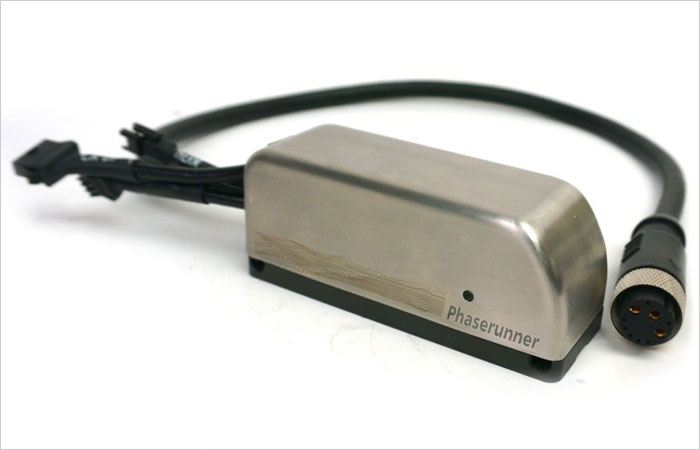

Phaserunner L10 Specifications:

• Stainless steel finish
• Integrated phase lead with over-molded locking 10-pin L10 connector

Downloads:

V3 Updates from V2
V2 Phaserunner User Manual with XT60-MT60 Plugs

Phaserunner Software Suite from Grin Tech, Mac
Phaserunner Software Suite from Grin Tech, Linux
Phaserunner Software Suite from Grin Tech, Windows
Windows drivers for the FTDI chipset inside the USB-TTL adapter can be found through FTDI here

Connectors are sold separately! Click here to see what is available.
