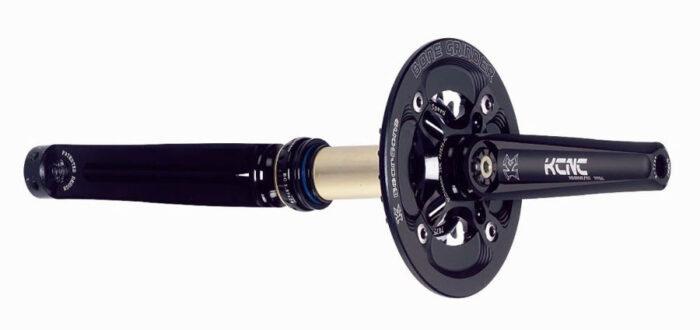

KCNC K-type FR1 – Freeride Crankset Double and Bash 32/22T


Double ring and bash guard crankset designed for more aggressive MTB use – designated FreeRide! Fully precision CNC machined MTB crankset complete with KCNC’s External Bearing Bottom Bracket (K-type).

These cranks are exquisite, complete with anodised Black alloy chainring bolts that are also available in Gold, Red, Blue, Green and Silver. The chainrings have machine finished teeth to keep them looking good when worn.

The K-type bottom bracket design features full stainless steel replaceable cartridge bearings and a red alloy spacer clamp to remove axial float of the scandium alloy axle. The crank arms are both removable from the BB axle, but the new design allows the driveside arm and spider to be left on the axle, and the axle to be removed by simply removing the non-driveside arm and sliding out of the BB. The non-driveside arm is supplied with a stainless steel extractor cap.

Available in 165, 170, 175mm arm lengths

CNC machined 7075 T7 alloy chainrings ramped and pinned for perfect shifting
32/22T black anodised finish with silver teeth
CNC 7075 alloy 4-arm spider, BCD 104/64mm
Patented double hollow hole design arms 7075AL crank arms
7075 alloy chainring bolts throughout
T-7451 scandium alloy bottom bracket axle with replaceable stainless external bearings
Fits 68 and 73mm shells with spacers, and will accept an E-type derailleur on a 73mm shell
M18 extra long cnc’d Sc alloy crank bolts
Q-Factor 164mm
Designed for aggressive xc / trail riding.

Weighs ~830g
