Motor Harness Connectors:

Description

We offer a comprehensive selection of connectors for the Phaserunner and Cycle Analyst. These include several different combinations of connectors and lengths as well.

Motor Harness Connectors:

• Phaserunner Battery Harness

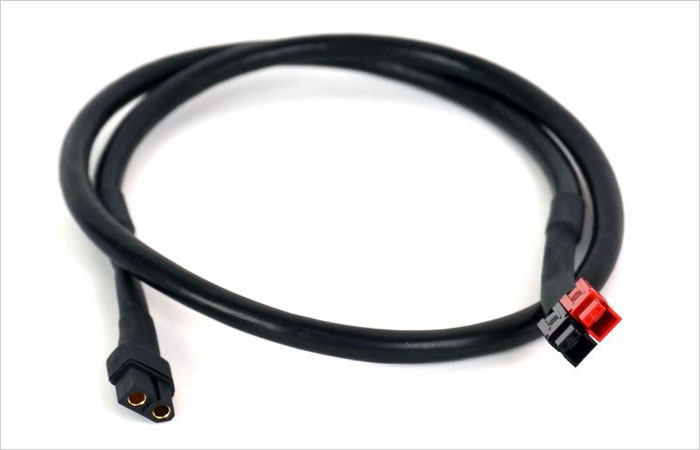

Phaserunner Battery Harness

Stock Phaserunner power cable harness. The controller end is terminated in XT60 plugs while the battery side has High Detent Anderson Powerpoles. 84cm total cable length.

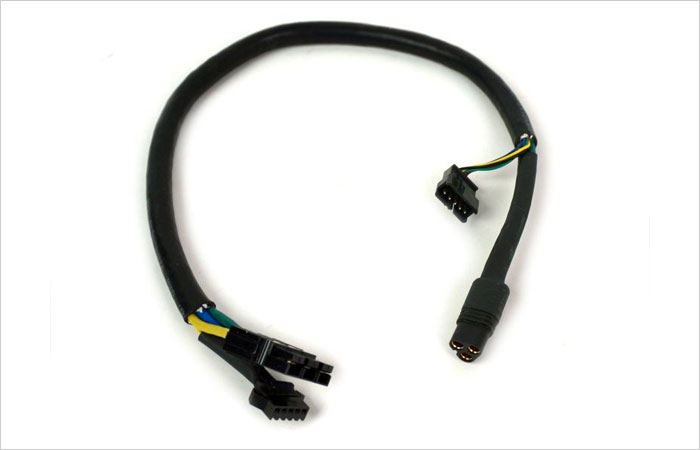

Phaserunner Stock Motor Harness

Stock Phaserunner motor cable harness. The controller end is terminated in MT60 plugs and the male JST-SM for the hall sensors, while the motor side has High Detent Anderson Powerpoles and female JST-SM for the halls. Available in either 45cm or 120cm cable lengths

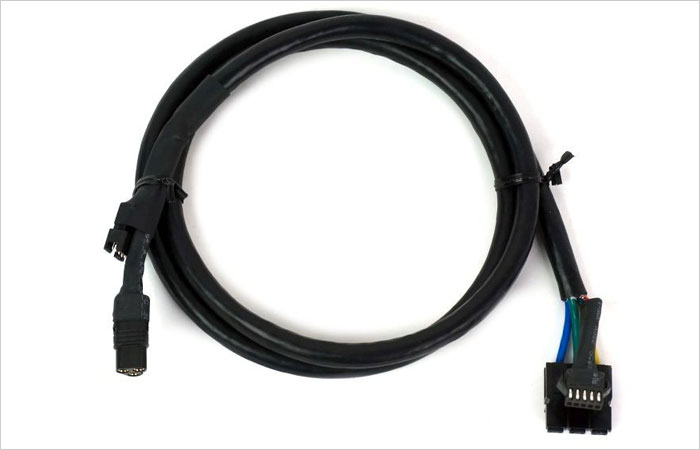

Phaserunner HiGo Z910 Motor Harness

Phaserunner motor cable harness with 9pin waterproof HiGo motor plug. The controller end is terminated in and MT60 and male JST-SM for connection to the Phaserunner, while the motor side has a Z910 HiGo plug. Available in a 97cm cable length. *9th pin wire lead is located under the heat shrink wrap on MT60 end of the harness. To be used for G31X speed pickup by replacing the 6th pin on the CA JST connector.

Phaserunner BBSHD Motor Harness

Cable harness for mating the Phaserunner to a BBSHD drive system. This allows for a mostly plug and play replacement of the stock internal controller of a BBSHD system when upgrading to an external Phaserunner controller. The harness includes wiring to bring the temperature and PAS sensor of the motor right up to the Cycle Analyst, so that you can use the Cycle Analyst’s PAS functionality and thermal rollback without any additional components. The controller end is terminated in MT60 plugs and the male JST-SM for the hall sensors, while the motor side has spade terminals and a 6 pin hall connector and 4 pin PAS connector. The PAS and Temperature signal cables are brought up to compatible 5pin and 2 pin male JST plugs for the CA, and include a built-in 10V->5V regulator so that the PAS sensor gets the appropriate 5V power supply.

£29.95£34.95
